The 30-Series is a high-capacity workhorse of the paper line — a 30″ (762 mm) cutting chamber at 75 or 100 HP, in strip-cut, cross-cut or particle-cut. Pick the cut and the output you need; we'll size the line around it.
| Model | Materials | Cut | Piece size | HP | Capacity | Discharge | Optional configurations |
|---|---|---|---|---|---|---|---|
| 30-500C | Paper · cardboard | Strip-cut | 5/8″ (15.9 mm) | 75 / 100 HP | 3–4 tons/hr (2.7–3.6 t/hr)* | External | Output conveyor · HLS-Tipper |
| 30-500CX | Paper · cardboard | Cross-cut | 1/2″ × 2″ (12.7 × 50.8 mm), or 5/16″ × 1-1/2″ (7.9 × 38.1 mm) / 5/16″ × 2-3/4″ (7.9 × 69.9 mm) | 75 / 100 HP | 1.5–2.5 tons/hr (1.4–2.3 t/hr)* | External | Output conveyor · HLS-Tipper |
| 30-500PC | Paper · cardboard · plastic · e-scrap (HDD/SSD) | Particle-cut | 1/2″ × variable (12.7 mm × variable) | 75 / 100 HP | On request | External | Output conveyor · Infeed conveyor · HLS-Tipper |

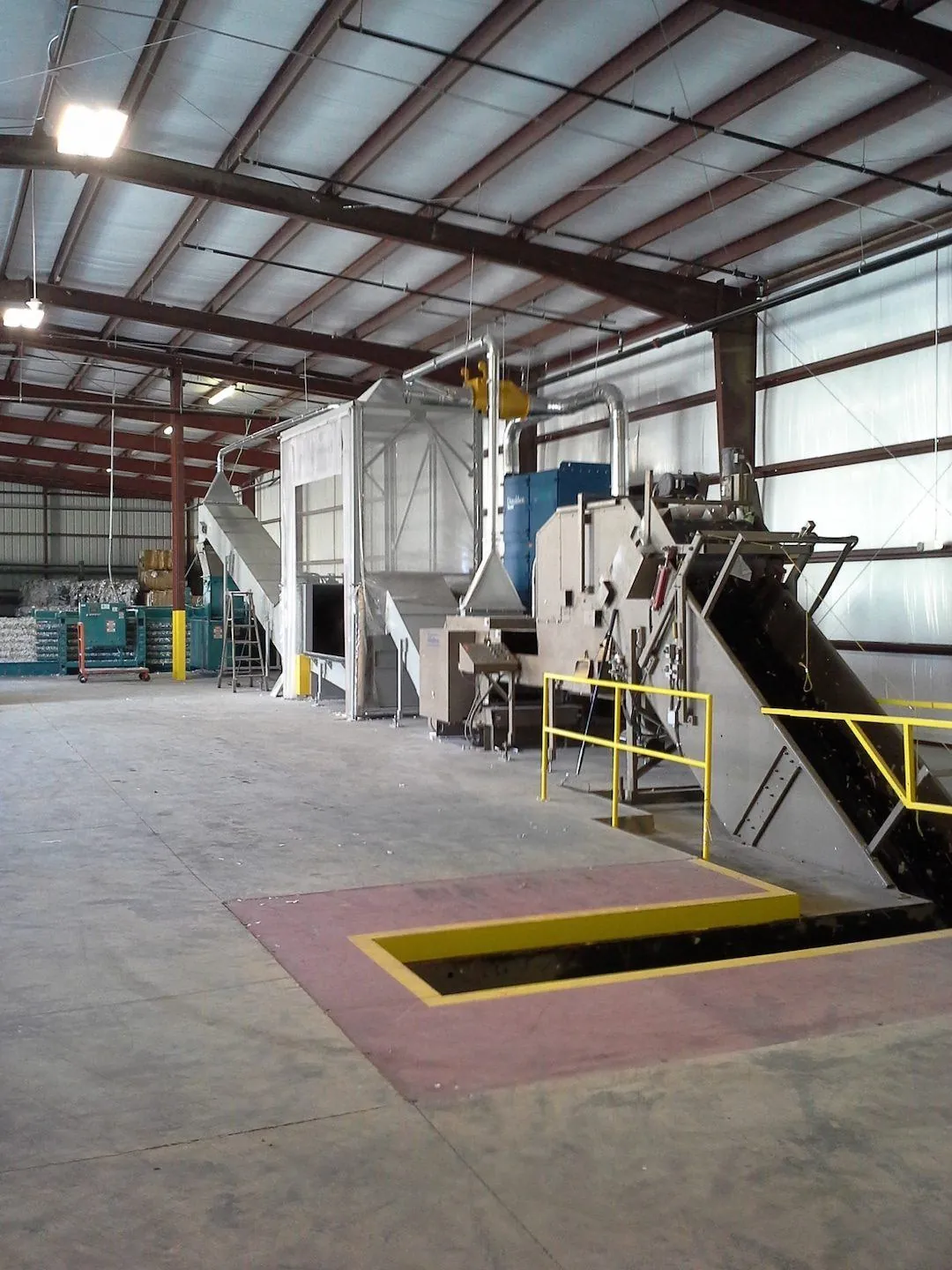

Standard cutter sizes shown — the approximate finished piece. * With an Allegheny Shredder Auto-Feed System. Full specifications for the 30-500C and 30-500CX are below; particle-cut capacity, dimensions and weight are available on request.
Also destroys e-scrap. The 30-500PC particle-cut configuration also shreds hard drives and SSDs in bulk — see the Particle Cut line.
| Cutting assembly | 30″ (762 mm) |
| Capacity | 3–4 tons/hr (2.7–3.6 t/hr)* |
| Horsepower | 75 HP or 100 HP |
| Voltage | 460 V, 3-phase, 60 cycle |
| Drive | Electric |
| Cutter type | Sawtooth |
| Cutter | 5/8″ (15.9 mm) |
| Dimensions | 105″ W × 144″ L × ~72″ H |
| Weight (approx.) | 11,500 lb (5,216 kg) |
| Color | Gray |
| Discharge type | External discharge |
| Cutting assembly | 30″ (762 mm) |
| Capacity | 1.5–2.5 tons/hr (1.4–2.3 t/hr)* |
| Horsepower | 75 HP or 100 HP |
| Voltage | 460 V, 3-phase, 60 cycle |
| Drive | Electric |
| Cutter type | Cross-cut |
| Cutter | 1/2″ × 2″ (12.7 × 50.8 mm) |
| Dimensions | 105″ W × 144″ L × ~72″ H |
| Weight (approx.) | 11,500 lb (5,216 kg) |
| Color | Gray |
| Discharge type | External discharge |
* Listed tonnage range is based on realistic performance utilizing an Allegheny Shredder Auto-Feed System. Actual capacity depends on available supply and on operator performance.
Note: Actual capacity and performance may vary depending on material properties, operating conditions, and available power supply. Specifications are subject to change without notice as part of our continuous product improvement program. Dimensions and weight exclude optional configurations.
Engineer the feed, output and handling around the shredder.
Material, volume, and the result you need at the end. Help us understand your space — direct from the people who build the machine.
