Concept

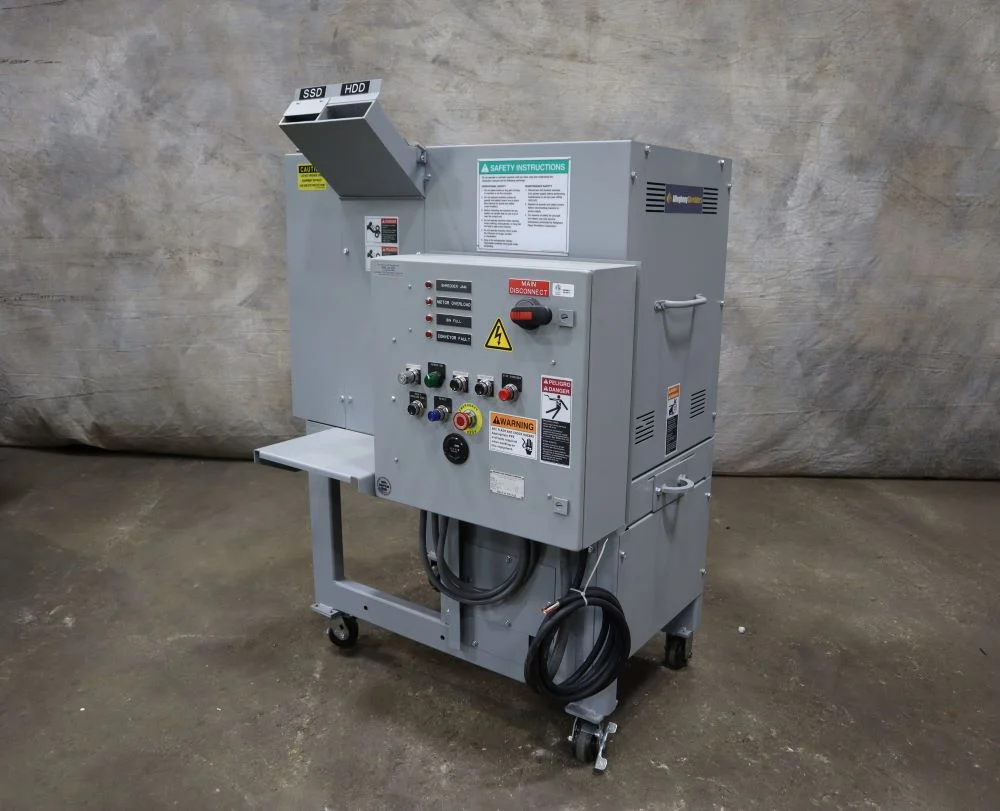

Allegheny has recently introduced their new SelecShred™ Hard Drive Shredder. This powerful shredder gives customers the ability to securely destroy both solid state drives (SSDs) and hard drives on the same machine, as well as most e-scrap products, including cell phones, circuit boards, tapes, and CD’s.
The SelecShred™ Hard Drive Shredder comes in 3 different models. A 5 Hp. and 7½ Hp. model, which destroy SSDs to 3/8″ and hard drives to 1½”, and a 20 Hp. model, which shreds SSDs to 3/4″ and hard drives to 3/8”.
The 12HD7.5 and 12HD20 SelecShred™ have a 12 inch wide feed opening, allowing for a 6 inch cutting width for both the HD and SSD side. These models come with a bolt on output conveyor that discharges at standard gaylord height for easy disposal of shredded e-scrap material.
Allegheny’s 9HD5 SelecShred™ has a 9 inch wide feed opening with 5 inches for hard drives and 4 inches for SSDs. This model does not have an output conveyor option, but has a self-contained 7.5 gallon container that holds shred and is easily removable for dumping.
Benefits
- Provide customers with different shred width options to follow internal regulations
- Shredder can be used in a mobile truck for on-site e-scrap destruction
Specifications
| Model | 9HD5 SelecShred™ | 12HD7.5 SelecShred™ | 12HD20 SelecShred™ |
|---|---|---|---|
| Cutting Assembly | 9" overall (4" SSD side, 5" HDD side) | 12" overall (6" SSD side, 6v HDD side) | 12" overall (6" SSD side, 6" HDD side) |
| Capacity | 12-15 HDD’s per minute | 25-30 HDD’s per minute | 30-35 HDD’s per minute |
| Horsepower | 5 Hp. | 7.5 Hp. | 20 Hp. |
| Voltage | 208V, 230V, or 460V, 3 phase, 60 cycle | 208V, 230V, or 460V, 3 phase, 60 cycle | 208V, 230V, or 460V, 3 phase, 60 cycle |
| Drive | Electric | Electric | Electric |
| Input Speed | 23 FPM | 42 FPM | 65 FPM |
| Cutter Type | 6 ½" diameter, hooked/sawtooth | 9” diameter, hooked/sawtooth | 10 ½" diameter, hooked/sawtooth |
| Cutter Size | 3/8" SSD side, 1 ½" HDD side | ¾" SSD side, 1 ½" HDD side | 3/8" SSD side, ¾" or 1 ½" HDD side |
| Dimensions | 33" W x 33" L x 55" H | 42" W x 45" L x 56" H | 48" W x 55" L x 68vH |
| Weight (approx.) | 1,300 lbs | 2,500 lbs. | 4,500 lbs |
| Paint | Grey | Grey | Grey |
Optional Equipment Available for 12HD7.5 or 12HD20 SelecShred™:
- Input Conveyor with Hopper
- Bolt-on Output Conveyor
- Stainless Steel package (available for all models)
- Dust Containment and Collection
